Fire Rated Tongue and Groove Wall Panels (FR MDF)
Fire rated tongue and groove panels use FR-grade MDF, manufactured with fire-retardant additives throughout the board. They are specified where building control, an HMO licence or a commercial fit-out requires a reaction-to-fire classification on wall linings.
£29.99
- Made in Northampton
- Cut to size on request
- UK-wide pallet delivery
- Free local collection
Delivery and collection
Tracked courier, pallet network and same-day options across England, Scotland and Wales. Collection from our Northampton workshop is free. See full delivery and returns information.
Quality guarantee
CNC-machined and hand-checked before despatch, with batch-matched spares available.
Lead time
Made to order in 5–10 working days, up to three weeks for bespoke sizes in peak season.
What are fire rated tongue and groove wall panels?

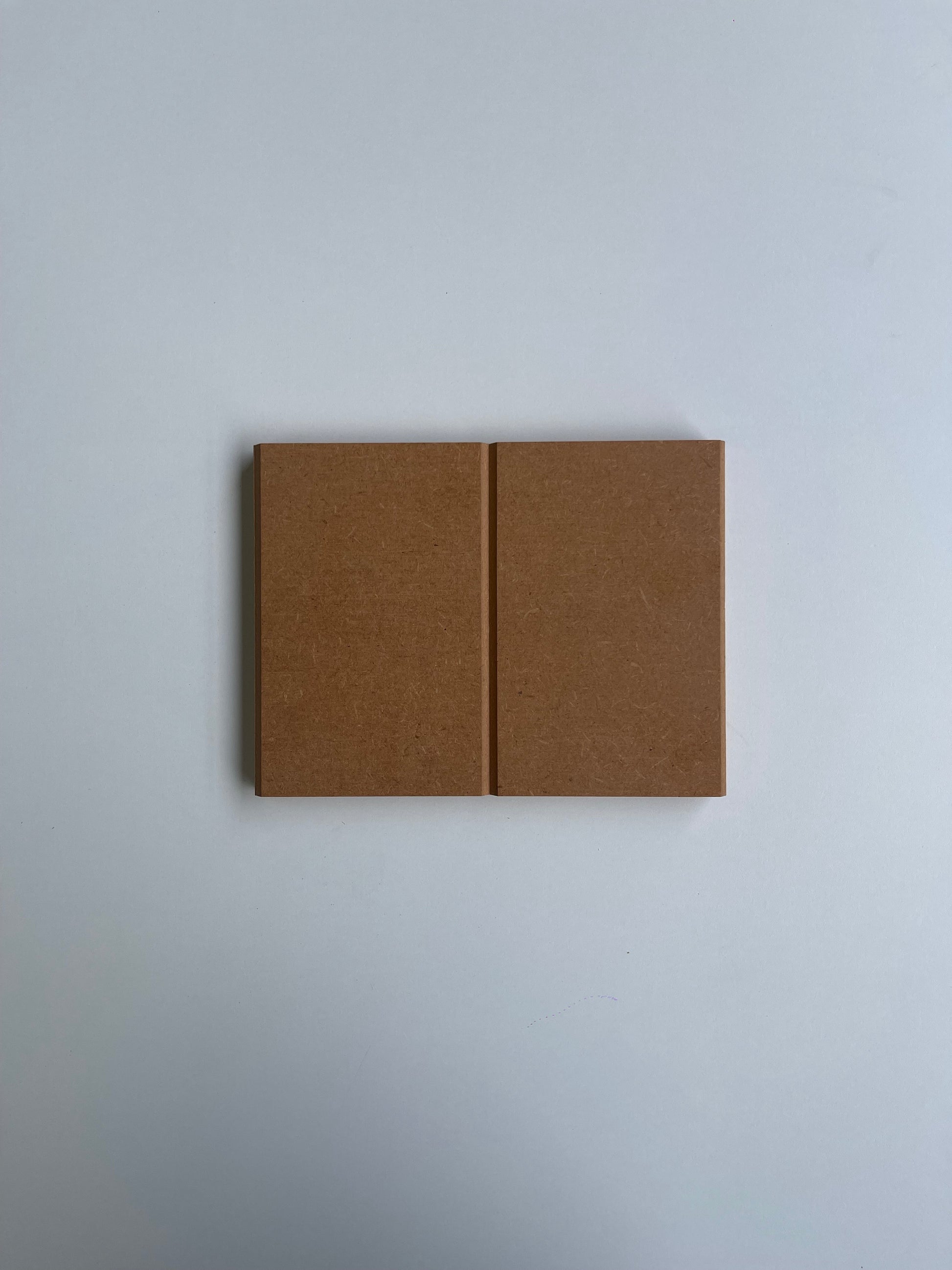

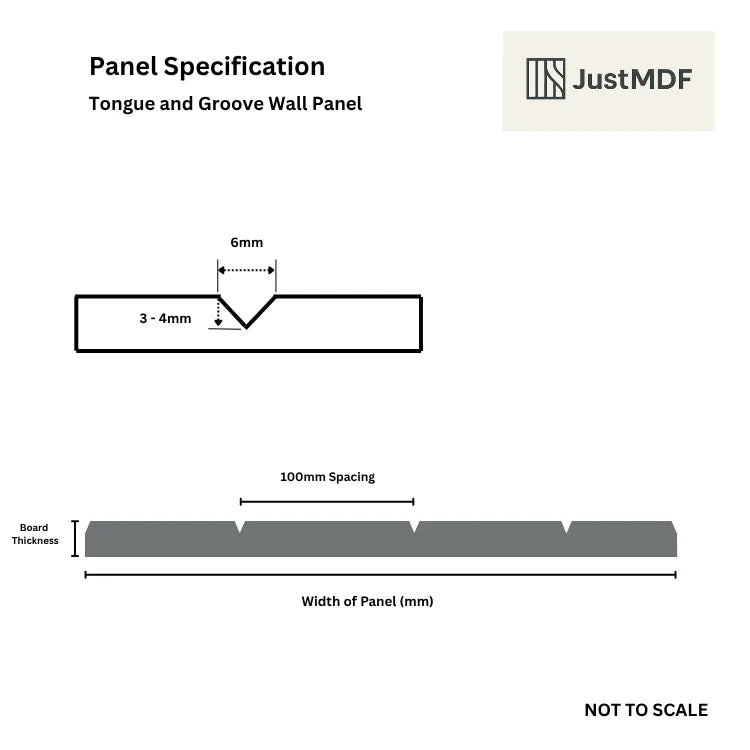

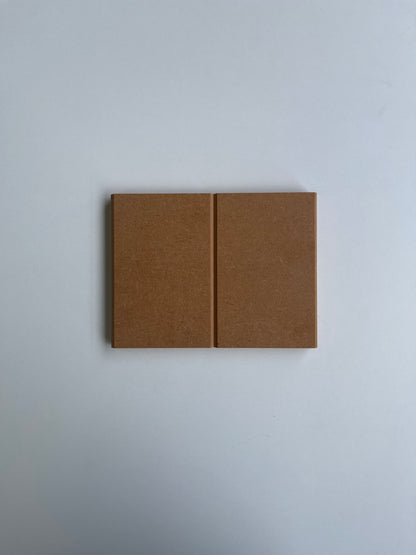

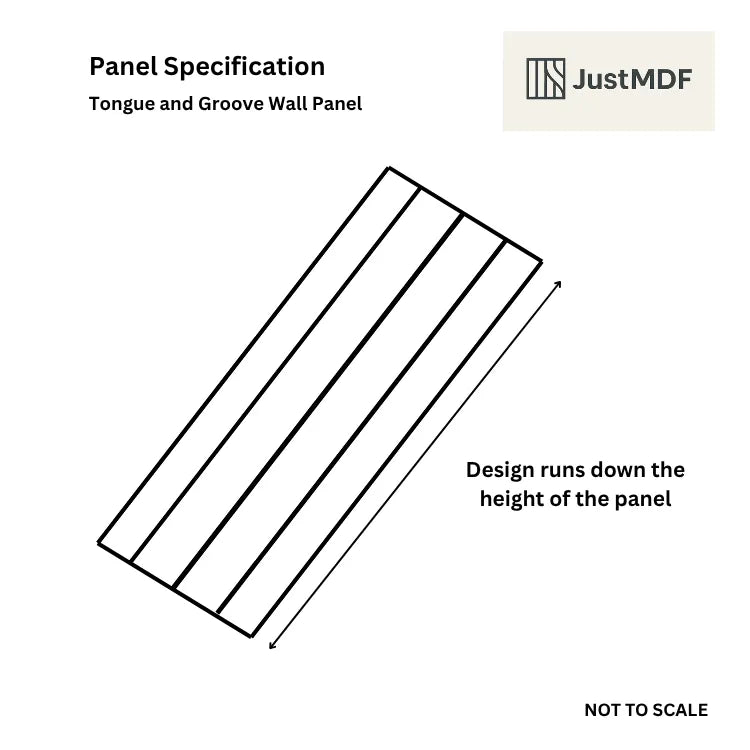

Fire Rated Tongue and Groove Wall Panels are machined MDF sheets with a butted edge and a half groove detail at each joint, so neighbouring sheets butt together and the matching half grooves form a continuous V-joint across the wall.
Where fire rated panelling is required
Escape corridors, stairwells, HMO communal areas, hotels, schools, care homes and licensed premises commonly require Euroclass B-s1,d0 wall linings. Domestic hallways that form part of a protected escape route can also fall under the requirement.
If you are unsure, ask your building control officer or fire risk assessor for the classification required, then send it to us — we will confirm the correct board grade before we machine anything.
Finishing FR MDF without losing the rating
The fire performance comes from the board itself, but heavy coatings can affect the tested system. Use a compatible, thin-build primer and an emulsion or eggshell topcoat rather than thick textured finishes, and keep records of the products used for your handover file.
How to fit tongue and groove MDF panelling
Fit the first sheet to a plumb line, then butt the next sheet against it so the half groove on each edge meets and forms a continuous V-joint. On plasterboard use grab adhesive plus a few pins into studs; on masonry, batten out at 400mm centres first.
Scribe the final sheet to the corner, then finish with skirting, a dado rail or a shadow-gap trim. The matching half grooves hide the sheet-to-sheet seam, giving a continuous board line across the whole wall, even on runs of five or six metres.
- Butted edge with half groove detail at each joint
- Cuts cleanly with a fine-tooth circular saw or track saw
- Suits full-height, half-height and dado-height layouts
Manufacturing and delivery for fire rated tongue and groove wall panels
Every sheet is machined to order at our Northampton workshop on a CNC router, then hand-finished and quality checked before it leaves the bench. Standard lead time is 5–10 working days, rising to around three weeks in peak season or for bespoke sizes.
We deliver nationwide across England, Scotland and Wales. Small orders travel by tracked courier, full sheet orders travel on a pallet with a tail-lift vehicle, and time-critical or oversized orders can go out on our own vehicle or by same-day courier. Collection from Northampton is free and usually available the day your order is finished.
- Made to order in Northampton — no imported flat-pack stock
- Tracked courier, pallet network and same-day options
- Cut-to-size service available on request for awkward walls
- Free local collection from our Northampton workshop
Specification
| Thickness (mm) | 9mm, 12mm, 18mm |
|---|---|
| Sheet Size (mm) | 2400 x 600, 2400 x 400, 1200 x 600, 1200 x 400 |
| Profile | Butted edge with half groove detail at each joint |
| Core | MDF, machined both faces where specified |
| Fixing | Grab adhesive and/or pins to battens |
| Material | Fire retardant (FR) medium density fibreboard |
| Made in | Northampton, United Kingdom |
Fire Rated Tongue and Groove Wall Panels compared with butt and bead panelling
| Feature | Fire Rated Tongue and Groove Wall Panels | Butt and bead panelling |
|---|---|---|
| Joint | Butted edge with half groove detail at each joint | Butted edge with a bead detail at each joint |
| Look | Classic cottage/farmhouse vertical boards | Crisper, more formal Georgian bead |
| Best for | Hallways, bathrooms, dado-height runs | Living rooms, dining rooms, feature walls |
Frequently asked questions
What fire rating do these panels achieve?
The FR MDF we machine is manufactured to Euroclass B-s1,d0 in the tested thicknesses. We supply the board manufacturer's declaration of performance with commercial orders on request.
Is fire rated MDF also moisture resistant?
Not by default. FR and MR are separate grades. If you need both — for example a hotel bathroom corridor — tell us and we will quote a combined FR/MR board.
Can tongue and groove MDF panelling be used in a bathroom?
Yes, provided you specify a moisture resistant (MR) grade, seal every cut edge and keep the panels away from direct splash zones. In a shower enclosure use tiling or a wet-wall board instead.
Do I need to paint tongue and groove MDF panels?
Primed and raw MDF finishes must be painted. Use an MDF primer, lightly denib, then two coats of eggshell or satin. Black dyed sheets are coloured through the board and only need a clear protective coat if you want extra durability.
Care and maintenance
- Dust with a soft dry cloth; avoid soaking the MDF core.
- Wipe marks with a barely damp cloth and dry immediately.
- Touch up chips with filler and re-coat with the same paint system.
- Seal all cut edges before decorating to stop moisture wicking in.
Product details from our workshop
Tongue and groove wall panels made to order in Northampton: Fire Rated Tongue and Groove Wall Panels are machined on our CNC routers and delivered across England, Scotland and Wales. Each sheet is machined with a butted edge and a half groove detail at every joint, so neighbouring boards meet to form one continuous V-joint line across the wall. Manufactured from fire rated (FR / Euroclass B) MDF, available in sheet sizes of 2400 x 600, 2400 x 400, 1200 x 600, 1200 x 400, thicknesses of 9mm, 12mm, 18mm.
The fire rated core is specified for commercial fit-outs, escape routes, HMOs and any project where a Euroclass B reaction-to-fire rating is required by building control.
Supplied unfinished and ready to prime, so you can paint the panels in any colour to match your scheme. Ideal for hallways, stairwells, boot rooms and dado-height runs. Every sheet is CNC-machined, hand-checked and batch-matched so long wall runs line through correctly.
Specification
- Material: fire rated (FR / Euroclass B) MDF
- Thickness: 9mm / 12mm / 18mm
- Sheet size: 2400 x 600 / 2400 x 400 / 1200 x 600 / 1200 x 400
- Supplied: Unfinished, ready to prime and paint
- Made in: Northampton, UK — made to order in 5–10 working days
Delivered nationwide by tracked courier or pallet network, with same-day courier available on time-critical orders and free collection from our Northampton workshop.
