Fire Rated Butt and Bead Wall Panels for Commercial Fit-Outs
Fire rated butt and bead panelling gives specifiers the traditional beaded look while meeting reaction-to-fire requirements for commercial and multi-occupancy buildings. The fire performance comes from the FR MDF core, so the detail on the face is unchanged.
£23.99
- Made in Northampton
- Cut to size on request
- UK-wide pallet delivery
- Free local collection
Delivery and collection
Tracked courier, pallet network and same-day options across England, Scotland and Wales. Collection from our Northampton workshop is free. See full delivery and returns information.
Quality guarantee
CNC-machined and hand-checked before despatch, with batch-matched spares available.
Lead time
Made to order in 5–10 working days, up to three weeks for bespoke sizes in peak season.
What are fire rated butt and bead wall panels?
Fire Rated Butt and Bead Wall Panels are MDF sheets routed with a repeating bead detail between flat board faces, giving the crisp Georgian panelling look without building individual boards on site.
Specifying for hotels, HMOs and listed refurbishments
Heritage refurbishments often need a period detail on a wall lining that must still satisfy modern fire regulations. FR butt and bead solves both: the profile matches surviving original joinery while the board carries the classification your fire strategy requires.
We can machine to matched heights so new panelling lines through with existing dado rails and skirting in adjoining rooms.
Working with your contractor
Send us a schedule of wall lengths and heights and we will return a cutting list, sheet count and lead time you can drop straight into a programme. Pallet deliveries can be timed to a specific site day to avoid double handling.
Fitting butt and bead panelling on site
Set out from the most visible corner so the bead spacing stays consistent across the wall. Sheets butt tightly against each other and the machined bead at the sheet edge conceals the join, so plan your cuts to land on a bead rather than mid-board.
Adhesive plus pins into studs or battens is enough on plasterboard. Fill pin holes, caulk the perimeter, then prime the cut edges before your topcoat.
- Sheet-based — far faster than fitting individual beaded boards
- Bead detail disguises the butt joint between sheets
- Works full height or under a dado rail
Manufacturing and delivery for fire rated butt and bead wall panels
Every sheet is machined to order at our Northampton workshop on a CNC router, then hand-finished and quality checked before it leaves the bench. Standard lead time is 5–10 working days, rising to around three weeks in peak season or for bespoke sizes.
We deliver nationwide across England, Scotland and Wales. Small orders travel by tracked courier, full sheet orders travel on a pallet with a tail-lift vehicle, and time-critical or oversized orders can go out on our own vehicle or by same-day courier. Collection from Northampton is free and usually available the day your order is finished.
- Made to order in Northampton — no imported flat-pack stock
- Tracked courier, pallet network and same-day options
- Cut-to-size service available on request for awkward walls
- Free local collection from our Northampton workshop

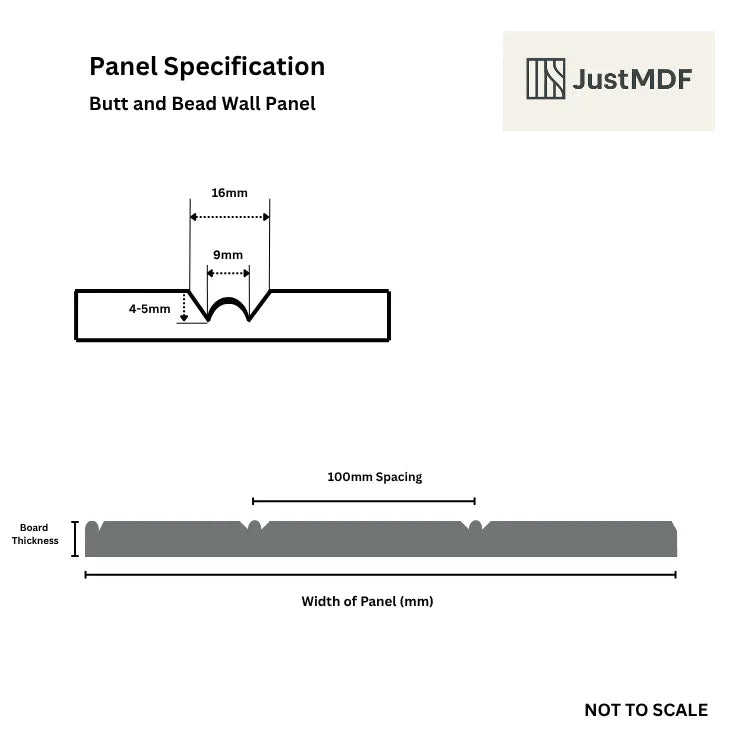

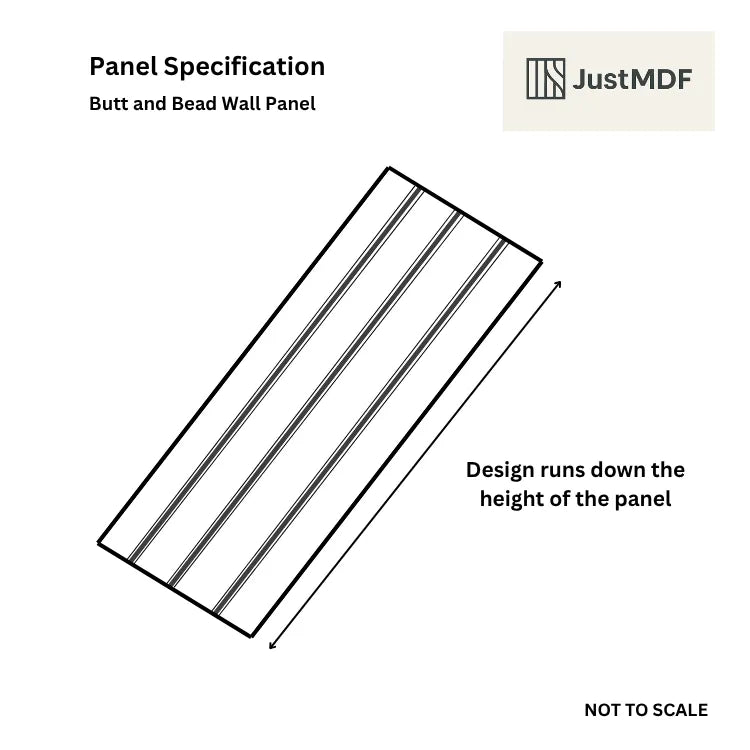

Specification
| Thickness (mm) | 9mm, 12mm, 18mm |
|---|---|
| Sheet Size (mm) Height x Width | 2400 x 600, 2400 x 400, 1200 x 600, 1200 x 400 |
| Profile | Flat board face with routed bead detail |
| Core | MDF, precision routed |
| Fixing | Grab adhesive with pins into studs or battens |
| Material | Fire retardant (FR) medium density fibreboard |
| Made in | Northampton, United Kingdom |
Fire Rated Butt and Bead Wall Panels compared with tongue and groove panelling
| Feature | Fire Rated Butt and Bead Wall Panels | Tongue and groove panelling |
|---|---|---|
| Joint | Butted sheets with a concealing bead | Butted edge with half groove detail at each joint |
| Style | Formal Georgian / Shaker bead | Rustic cottage boards |
| Set-out | Plan cuts to land on a bead | Slide-together, easier to scribe |
Frequently asked questions
Do you supply fire certification with the panels?
Yes — the board manufacturer's declaration of performance is available for commercial orders on request, giving you the Euroclass classification for your handover documents.
Can fire rated panels be scheduled for a specific site date?
Yes. Tell us your programme date when ordering and we will book the pallet delivery to match rather than despatching as soon as it is finished.
What is the difference between butt and bead and beaded tongue and groove?
Butt and bead sheets butt together and rely on the machined bead to hide the joint. Beaded tongue and groove uses a butted edge with a half groove detail at each joint, so the two half grooves form a full V between sheets. Visually they are close; butt and bead is quicker to set out on long walls.
How high should butt and bead panelling go?
Dado height at roughly 1000–1200mm suits hallways and dining rooms. Three-quarter height at around 1500mm works well in bedrooms, and full height suits high-ceilinged period rooms.
Care and maintenance
- Vacuum the bead grooves with a soft brush head to stop dust building up.
- Clean painted surfaces with a damp cloth and a mild detergent, never a scouring pad.
- Re-caulk perimeter joints if hairline cracks appear after the first heating season.
- Repaint high-traffic hallway runs every few years to keep the bead crisp.
Product details from our workshop
Butt and bead wall panels made to order in Northampton: Fire Rated Butt and Bead Wall Panels are machined on our CNC routers and delivered across England, Scotland and Wales. Each sheet is machined with a butted edge and a bead detail at every joint, giving the crisp, formal Georgian bead line associated with traditional panelled rooms. Manufactured from fire rated (FR / Euroclass B) MDF, available in sheet sizes of 2400 x 600, 2400 x 400, 1200 x 600, 1200 x 400, thicknesses of 9mm, 12mm, 18mm.
The fire rated core is specified for commercial fit-outs, escape routes, HMOs and any project where a Euroclass B reaction-to-fire rating is required by building control.
Supplied unfinished and ready to prime, so you can paint the panels in any colour to match your scheme. Ideal for hotel corridors, offices, reception areas and communal stairwells. Every sheet is CNC-machined, hand-checked and batch-matched so long wall runs line through correctly.
Specification
- Material: fire rated (FR / Euroclass B) MDF
- Thickness: 9mm / 12mm / 18mm
- Sheet size: 2400 x 600 / 2400 x 400 / 1200 x 600 / 1200 x 400
- Supplied: Unfinished, ready to prime and paint
- Made in: Northampton, UK — made to order in 5–10 working days
Delivered nationwide by tracked courier or pallet network, with same-day courier available on time-critical orders and free collection from our Northampton workshop.
